Certikin Liner Main Drain + Hydrostatic Relief Valve, Collection Tube & Plug, Bush & Nipple Bag (ZZ0353P)

Description

Certikin Liner Main Drain + Hydrostatic Relief Valve, Collection Tube & Plug, Bush & Nipple Bag

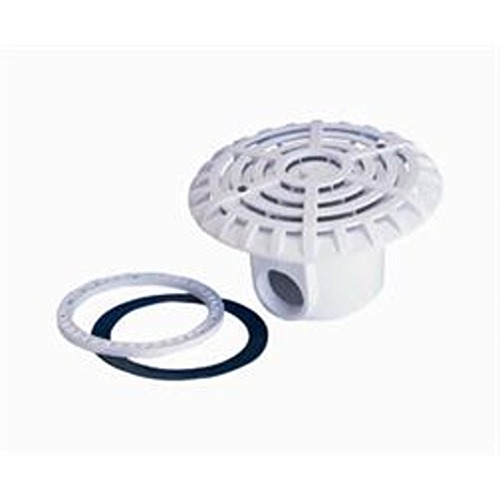

Introducing the Certikin Liner Main Drain HD33L, a premium solution designed to optimize the water flow and drainage system in both concrete and liner pools. This innovative product features Certikin’s unique grille design, setting it apart as a superior choice for pool maintenance and safety. Whether you are looking to enhance the filtration process or efficiently empty your pool, the HD33 drain is a versatile and reliable option.

Constructed from durable white ABS material, the Main Drain HD33L is built to withstand the demands of pool environments while ensuring longevity and performance. The inclusion of self-tapping fixing screws adds an extra layer of security, giving you peace of mind when it comes to installation.

Key Features:

– High Flow: The Main Drain HD33L offers exceptional water flow capacity, allowing for efficient filtration and drainage processes.

– Low Velocity Grille: The grille design is optimized to maintain a low velocity, reducing turbulence and ensuring smooth water circulation.

– Increased Free Flow Area: With up to 50% more free flow area compared to other models, this drain maximizes water movement for improved pool maintenance.

– Anti-Vortex Design: The anti-vortex feature enhances safety by preventing dangerous whirlpools that can pose a risk to swimmers.

– Protective Film: A protective film is included to safeguard the drain during installation, preventing damage and ensuring a pristine appearance.

– Stainless Steel Option: For enhanced durability and a sleek aesthetic, a stainless steel grille variant (CK33S) is available for selection.

– Commercial Installation Compatibility: Square frame and grille options are offered for commercial installations, catering to a wide range of pool settings.

Main Drain Selection Guidance:

When selecting the appropriate sump (main drain) size, it is crucial to consider the total flow that may be directed to the plant room via the sump(s). The sizing of the sump should align with the expected flow ratios, with adjustments made for Skimmer type pools (70% Surface/30% sump) or Deck Level pools (50% Surface/50% sump). In commercial or shallow pool applications, stainless steel main drain grilles are mandatory for compliance and safety.

For optimal safety and performance, it is recommended to install at least two main drains positioned 2 meters apart to minimize the risk of entrapment and ensure efficient water circulation.

Explore the Product Documentation:

– HD33L_CAD-75.pdf

– HD33LD_CAD-76.pdf

– HD33L-77.dwg

– HD33LD-78.dwg

– certikin_maindrain_brochure-79.pdf

Manufacturers description:

Certikin Liner Main Drain + Hydrostatic Relief Valve, Collection Tube & Plug, Bush & Nipple Bag

Main Drain HD33L Featuring Certikin’s unique grille design and available for concrete or liner pools the HD33 drain is used to draw the base water for -ltering and is also used as the principal method of emptying the pool. Both concrete and liner types come complete with self-tapping fixings screws for added safety. Manufactured in white ABS.Features:- High Flow- Low Velocity grille supplied as standard- Provides up to 50% more free flow area than other models- Anti-vortex design- Protective film prevents damage during installation- Stainless steel grille available (CK33S)- Square frame and grille range available for commercial installationsMain Drain SelectionWhen choosing sump (main drain) size always assume that total flow may be directed to the plant room via the sump(s) – sump size should be chosen accordingly. In normal conditions flow will be divided between surface draw-off and sump(s) in ratio: 70% Surface/30% sump for Skimmer type pools or 50% Surface/50% sump for Deck Level pools.Important – On commercial or shallow pool applications stainless steel main drain grilles must be used. Recommendation – Main drains must be arranged so that there is no risk of bathers being drawn towards them or trapped there. It is recommended that on all installations, including domestic, a minimum of 2 xmain drains are installed 2 metres apart.

Product documentation:

HD33L_CAD-75.pdf

HD33LD_CAD-76.pdf

HD33L-77.dwg

HD33LD-78.dwg

certikin_maindrain_brochure-79.pdf
